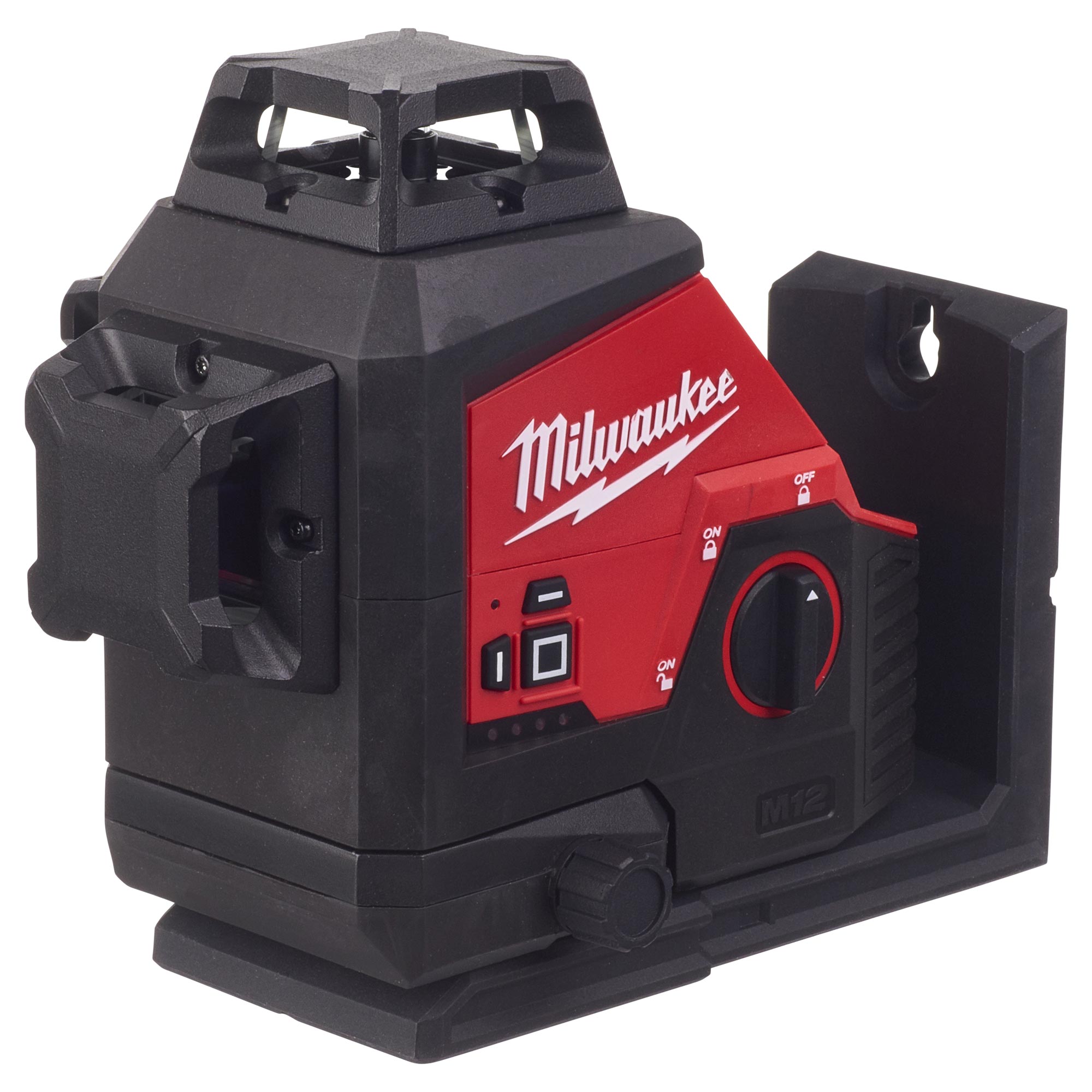

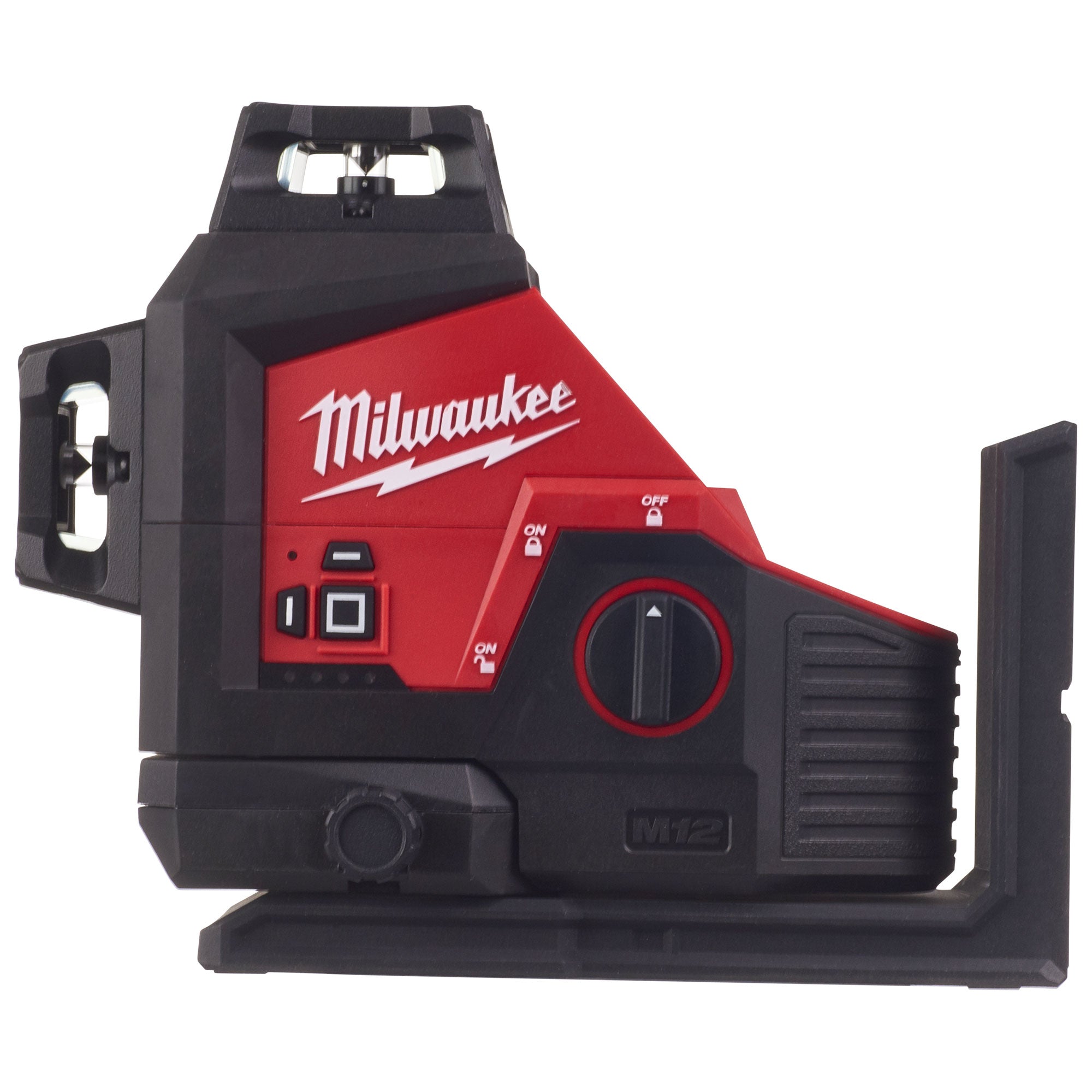

There Laser LevelMilwaukee M12 3PL-401C It features a horizontal line and two vertical lines for alignment, leveling, squaring and point transfer, for easy space design with a single tool.
The high intensity green laser offers uncompromising visibility: up to 4 times more visible than red lasers.
The pendulum system has 3 modes: manual for use at any angle, self-leveling with misalignment indication with 4° of variation and locked pendulum for added protection during transport.
The 330° rotation of the laser with micro-alignment wheel allows for precise and rapid adjustments.
Equipped with magnets, ¼″ and ⅝″ tripod threads and integrated holes: easy attachment to steel, wood and tripod.
Protection class IP 54, resistance to drops from 1 m.
Works with all batteries MILWAUKEE® M12™.
TECHNICAL SPECIFICATIONS
- Accuracy: 0.3mm/m
- Self-leveling: 4.0°
- Laser classification: Class 2
- Laser color: Green
- Range: 38 m
- Range with receiver: 50/100 m
- Receiver Compatibility: LLD50
- Laser projection: 2 vertical lines, 1 horizontal line
- Self-leveling time: 3s
- Weight: 1.5 Kg
- Voltage: 12V
- Battery type: Li-ion
- Battery capacity: 4.0 Ah
- Max. autonomy with M12 4.0Ah battery: 15 h

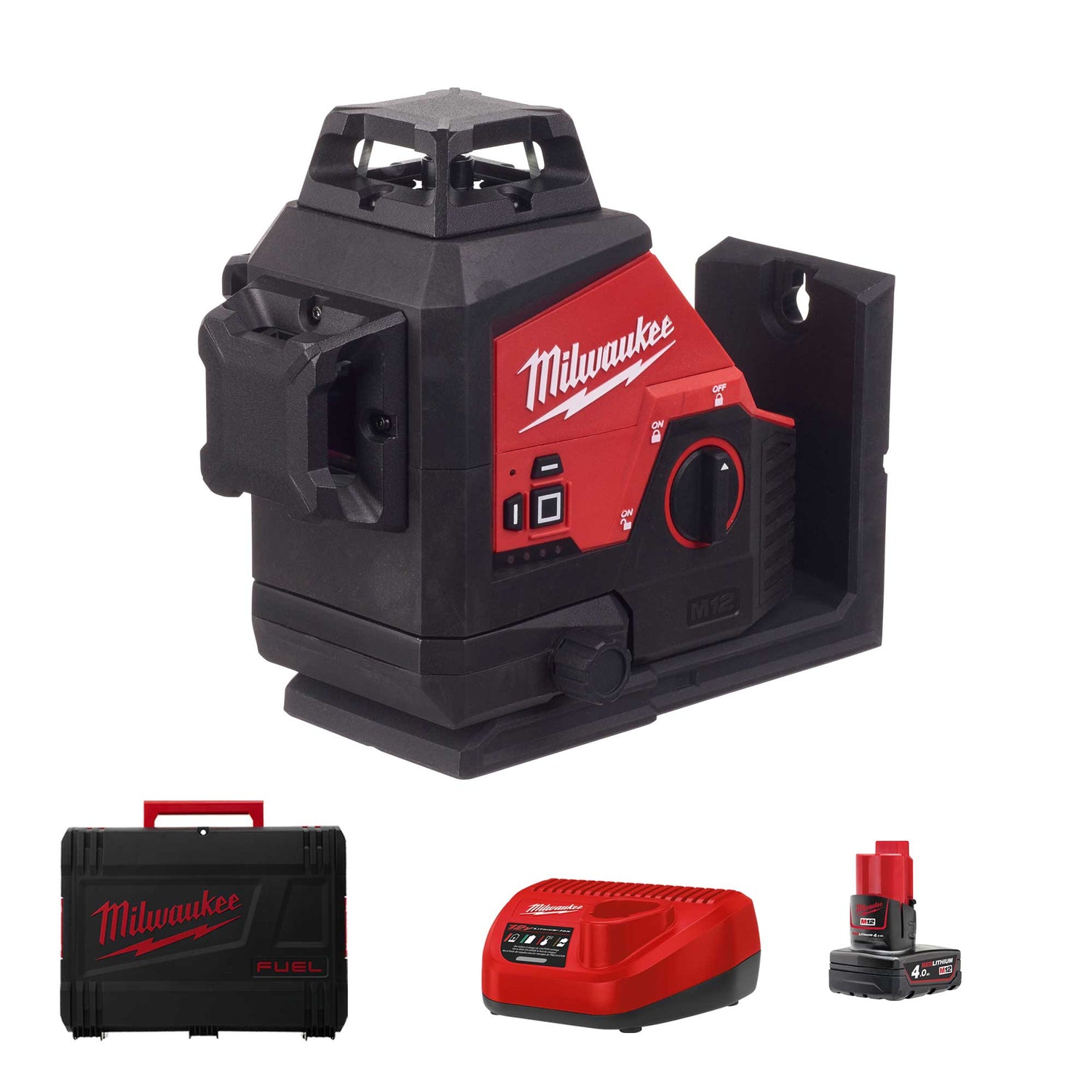

ACCESSORIES SUPPLIED
- Supplied with battery
- Supplied with charger
- Supplied with case
- 1 high visibility sight
- 1 wall mounting clip
